GECKO 2030+GECKO MINI 18
SENSORED BRUSHLESS COMBO
For 1/18 th Scale Crawler remote control cars
GECKO 2030+GECKO MINI 18
SENSORED BRUSHLESS COMBO
For 1/18 th Scale Crawler remote control cars
MOTOR FEATURES
• The Maximum power of motor 120w & output around 92%.
• The thickened gold plated PCB circuit board easy welding ESC cables, more perfect car frame wiring.
• The standard sensor port 5PIN-1.27 terminal sensor wires connection.
• High slot full resistance internal resistance for high power output.

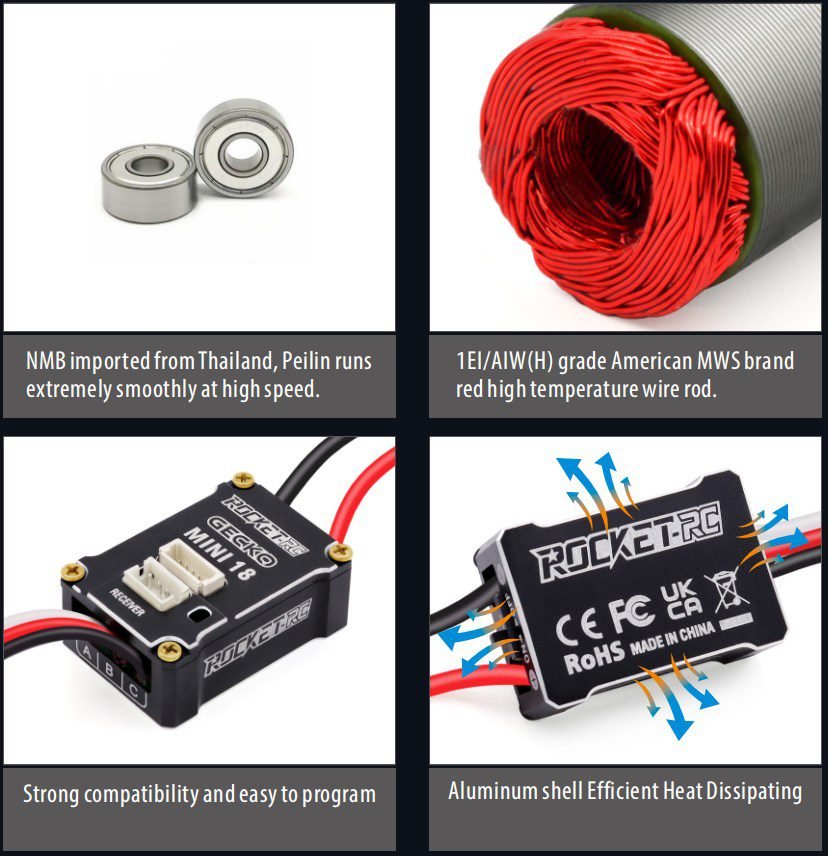

• Unique stator adopts 0.2mm silicon steel sheet, efficiency rate can reach 94%.
• Explosion-proof new magnetic rotor with 2Pole Super compliant linear high speed high temperatures 200°C .
• 1EI/AIW (H) US Standard MWS Brand Red High Temperature Wire Rod.
ESC FEATURES
• Specially designed for RC Crawler car with excellent start-up, acceleration and linearity features.
• speed close-loop control to the power system of rock crawler The low speed torque Is very strong, it is better than ordinary sensored brushless power system or even better than the brushed power system. Intelligent torque output & speed closed-loop control for easy • control, and consistent motor RPM under all loads.
• Built-in switch-mode BEC 5V/500mA for usage with high torque and high voltage servos.
• Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection/
• The strong resistant current capability, excellent heat dissipation.
GECKO 2030+GECKO MINI 18
SENSORED BRUSHLESS COMBO
For 1/18 th Scale Crawler remote control cars
GECKO 2030 SENSORED
GECKO MINI 18
SENSORED BRUSHLESS ESC
For 1/18 th Scale Crawler remote control cars
